RUBBER CORE DRILLS

Are You In Need of Core Drills for A Rubber Manufacturing Process?


Our line of rubber core drills are designed to remove slugs from seals used in the automotive industry. We have two specific lines of drills that we use that are optimized to be used in either vertical or horizontal drilling position.


While the sizes below are the standard sizes we manufacture we can make custom sizes for you. Let us know if there is a special need that you have and we will work with you on a solution.

Core Drilling Rubber

Cookie Cutter Drill

Vertical Applications

- Titanium Coating -

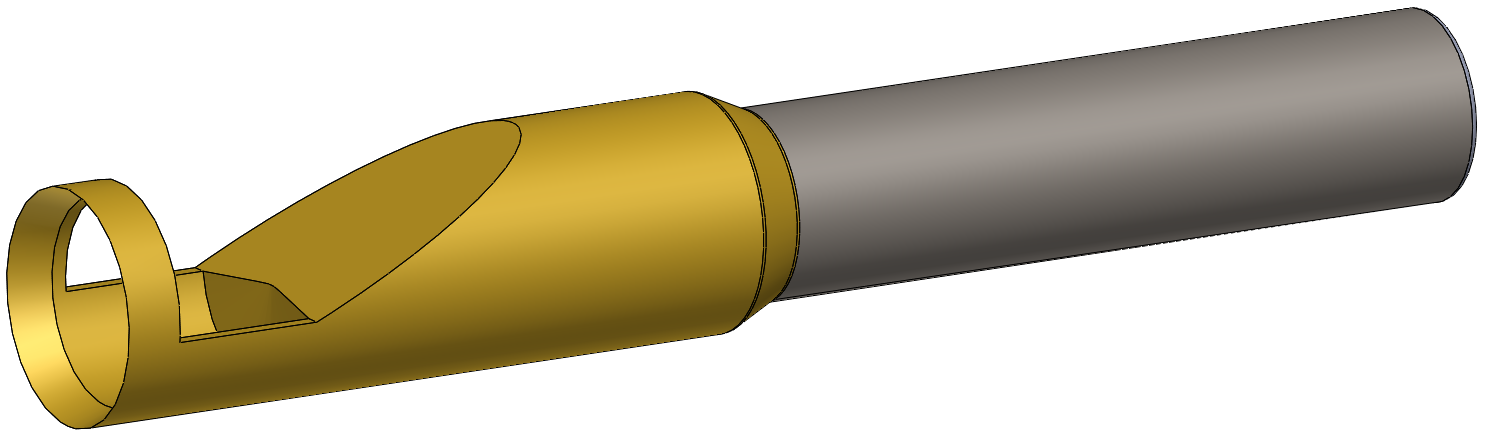

Rubber Core Drill

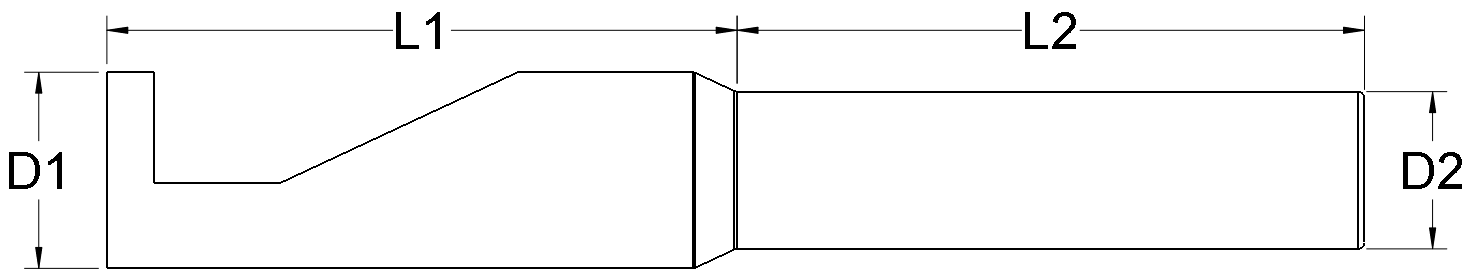

Rubber Core Drill Dimensions

Part Number

Shank (D2)

Length (L2)

Cutter (D1)

Length (L1)

118098TC

.118"

1.0"

.098"

1.0"

118118TC

.118"

1.0"

.118"

1.0"

118138TC

.118"

1.0"

.138"

1.0"

118156TC

.118"

1.0"

.156"

1.0"

118196TC

.118"

1.0"

.196"

1.0"

125098TC

.125"

1.0"

.198"

1.0"

125125TC

.125"

1.0"

.125"

1.0"

125156TC

.125"

1.0"

.125"

1.0"

125196TC

.125"

1.0"

.196"

1.0"

138138TC

.138"

1.0"

.138"

1.0"

156156TC

.156"

1.0"

.156"

1.0"

156196TC

.156"

1.0"

.196"

1.0"

156236TC

.156"

1.0"

.236"

1.0"

187187TC

.187"

1.0"

.187"

1.0"

196098TC

.196"

1.0"

.198"

1.0"

196118TC

.196"

1.0"

.118"

1.0"

196156TC

.196"

1.0"

.156"

1.0"

196196TC

.196"

1.0"

.196"

1.0"

250118TC

.250"

1.0"

.118"

1.0"

250156TC

.250"

1.0"

.156"

1.0"

250197TC

.250"

1.0"

.197"

1.0"

250236TC

.250

1.0"

.236"

1.0"

250250TC

.250"

1.0"

.250"

1.0"

250312TC

.250"

1.0"

.312"

1.0"

Forked Drill

Horizontal Applications

- No Titanium Coating -

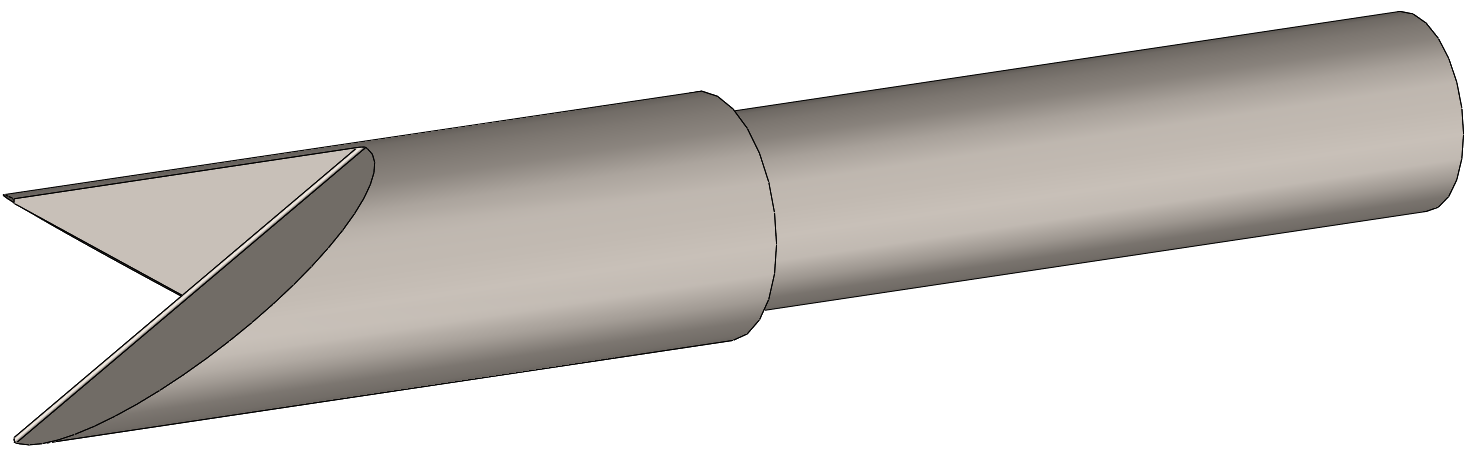

Forked Drill

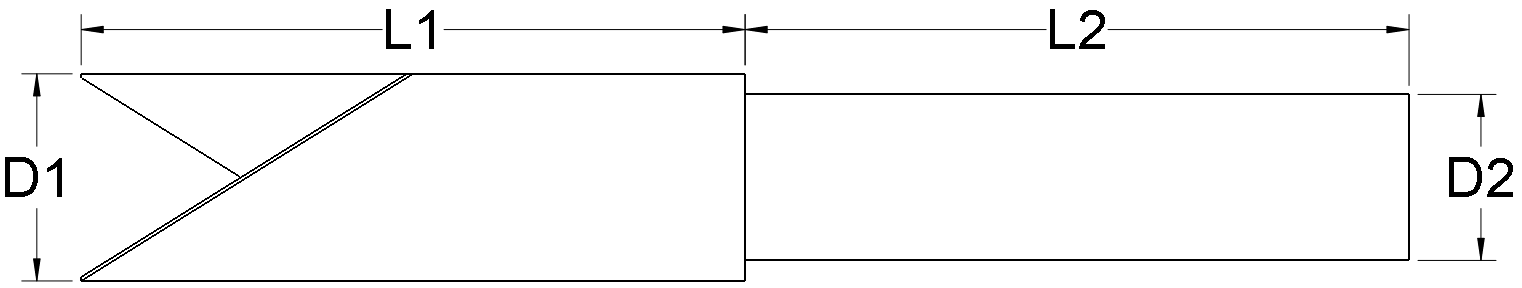

Forked Drill Dimensions

Part Number

Shank (D2)

Length (L2)

Cutter (D1)

Length (L1)

118098TC

.118"

1.0"

.098"

1.0"

118118TC

.118

1.0"

.118"

1.0"

118138TC

.118"

1.0"

.138"

1.0"
